It is common knowledge that we can’t actually see electricity. Rather, we can see and measure how it works. A Current Transformer is one of the important tools used to achieve that measurement. Current transformers provided by Bicron are designed for common commercial and industrial uses, and also for high-reliability applications that must withstand the demands of rugged environments. Our Current Transformers are best known for high accuracy and longevity.
Applications for Bicron Current Transformers include:
Computer Data Centers
Power Distribution
Energy Monitoring
Power Quality
HVAC Monitoring
Process Control Systems
Industrial Control Systems
Residential Energy Monitoring
Lighting Control
Secondary Metering
Motor Monitoring
Revenue Metering SCADA Systems
Distribution Transformer Monitoring
Solar Power Inverter Monitoring
Power Control Panels
Wind Power System Monitoring
Breaker Panels
Geothermal Power Systems
Smart Grid Monitoring
Bicron’s Multi-Phase Current Transformers for medium voltage, 50Hz to 60Hz, power grid applications are self-powered through energy harvesting. Our CT design senses and powers each phase, and provides power for metering, monitoring, communications and other external electronics. Complete isolation using solid dialectrics makes our device an excellent choice for switchgear applications. Designed and built to meet customer’s unique applications. Open frame or fully potted assemblies are available.
| Model | Description | Features |
|---|---|---|
|
CT101SL |
Miniature split core CT |
Input 5A to 100A, Output 333m VAC standard |
|
CT104VS |
Busbar CT |
Standard and custom sizes to 6000A, CAT IV rated |
|
CT104S |
Split core CT |
Five window sizes, CAT III rated |
|
CT104SMV |
Split core CT |
Millivolt AC output, 4160 VAC rated, multiple window sizes |
|
CT105SS |
Split or solid core CT |
Weatherproof; NEMA 6P/IP68W, hinged bar |
|
CT105DF |
Relay protection CT |
Split Core CT. Up to C800 rating, many sizes available |
|
CT105DS |
Relay protection CT |
Solid Core CT. Up to C800 rating, many sizes available |
|
CT105HSF |
Instrument CT |
Split or solid core. 600 VAC rated |
|
CT105TMV |
Medium voltage instrument CT |
Split core, 4160VAC applications, window sizes up to 8”x8” |
|
CT121FRC |
Flexible Rogowski coil |
Input current 10A to 100KA, output 250mV, 333mV |
| Image | Part Number | Description | Features | Datasheet |
|---|---|---|---|---|
| CT101SL | Miniature Split Core CT | Input 5A to 100A, Output 333m VAC standard | Datasheet (PDF) |
| CT104VS | Busbar CT | Standard and custom sizes to 6000A, CAT IV rated | Datasheet (PDF) |
| CT104SMV | Split Core CT | Millivolt AC output, 4160 VAC rated, multiple window sizes | Datasheet (PDF) |
| CT104S | Split Core CT | Five window sizes, CAT III rated | Datasheet (PDF) |
| CT105SS | Split or Solid Core CT | Weatherproof; NEMA 6P/IP68W, hinged bar | Datasheet (PDF) |

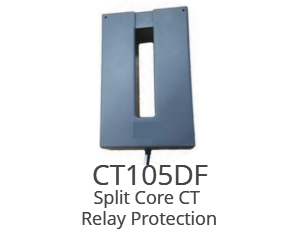

| CT105DF | Relay Protection CT | Split Core CT. Up to C800 rating, many sizes available | Datasheet (PDF) |
| CT105DS | Relay Protection CT | Solid Core CT. Up to C800 rating, many sizes available | Datasheet (PDF) |
| CT105HSF | Instrument CT | Split or solid core. 600 VAC rated | Datasheet (PDF) |

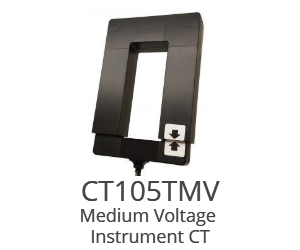

| CT105TMV | Medium Voltage Instrument CT | Split core, 4160VAC applications, window sizes up to 8”x8” | Datasheet (PDF) |
| CT121FRC | Flexible Rogowski Coil | Input current 10A to 100KA, output 250mV, 333mV | Datasheet (PDF) |
Our custom Current Transformer designs are developed to meet unique customer applications. Our extensive experience includes custom models for high voltage applications such as power distribution sensing and power harvesting. We also offer value-added assembly.
Please use our Current Transformer Design Worksheet to describe your application requirements for a Bicron modified standard or custom designed Current Transformer.
Visit our Technical Guide for Current Transformers webpage which provides fundamentals for Current Transformer design including technical terminology.
Our standard Current Sensing Transformers include window sizes up to 350 square inches with current ratings up to 10,000A and current ratios from 10:1 to 6000:5. Select models are UL recognized for indoor applications. See the selection table below for more details.
Advantages of using Bicron Standard Current Sensing Transformers:
Low cost AC current Sensing
Small size & weight
Electrically isolated output
PCB Mounting
No external power requirements
Extreme reliability
Safety recognitions
High linearity & repeatability
Simple electronic interface
Bicron’s proven Standard Current Sensing Transformer designs are great starting points for new application requirements. Our “modified standard” program permits us to substantially modify our standard electrical and mechanical specifications without incurring the cost of new product development. This allows you to quickly optimize your system at lower cost with our proven technology.
Our preferred core material for standard current sensing transformers is Bicron’s Special Permeability (SP), with proven performance features for accuracy, linearity, low-end resolution and temperature sensitivity. We also offer current sensing transformers made with Grain Oriented Silicon Steel (GOSS), providing good performance at a lower cost. Bicron’s preferred SP and GOSS materials offer advantages over other typical core materials as represented in the following comparison chart:
Core material considerations:
| Preferred Core Materials | Advantages |
|---|---|
|
Special Permeability (SP) |
Improved performance over wide temp; -35°C – +80°C Improved low level performance after exposure to DC shock Minimal Phase Angle (Iprimary VS Isecondary) typically less than 1% Excellent coupling of primary and secondary currents |
|
Grain Oriented Silicon Steel (GOSS) |
Provides high output voltages suitable for self-powered sensing |
| Part Number | Current Range (ARMS) | Core Material | Turns Ratio | ID (in.) | OD (in.) | Height (in.) | Datasheet |
|---|---|---|---|---|---|---|---|
| B5303* | 0 - 200 | GOSS | 5000:1 | 0.70 | 2.0 | ||
| EX9LC200 | 0 - 20 | SP | 2000:1 | 0.40 | 1.10 | ||
| EX9LC300 | 0 - 30 | GOSS | 1000:1 | 0.48 | 1.1 | ||
| EX9LC500 | 0 - 50 | SP | 1100:1 | 0.31 | 1.1 | ||
| EX9LE101 | 0 - 100 | SP | 1000:1 | 0.56 | 1.58 | ||
| EX9LG500 | 0 - 50 | GOSS | 1000:1 | 0.78 | 1.45 | ||
| EX9LP500 | 0 - 50 | GOSS | 1600:1 | 0.40 | 1.25 | ||
| EX9PA050 | 0 - 5 | SP | 200:1 | 0.15 | 1.11 | ||
| EX9PC200 | 0 - 20 | SP | 2000:1 | 0.40 | 1.25 | ||
| EX9PC300 | 0 - 30 | GOSS | 1000:1 | 0.48 | 1.25 | ||
| EX9PC500 | 0 - 50 | SP | 1100:1 | 0.31 | 1.25 | ||
| EX9PE101 | 0 - 100 | SP | 1000:1 | 0.56 | 1.64 | ||
| EX9PG500 | 0 - 50 | GOSS | 1000:1 | 0.78 | 1.51 | ||
| EX9PP500 | 0 - 50 | GOSS | 1600:1 | 0.40 | 1.37 |
Data subject to change.
*UL recognized for indoor applications.
Our Sales Team is available to answer any questions that you may have. Contact them today to learn more!
